Motor de corriente continua Hamburg 30" | Plateado | Motor de corriente continua

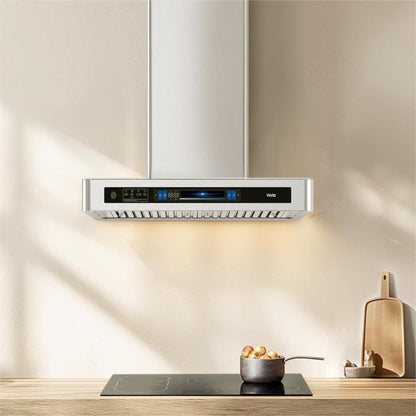

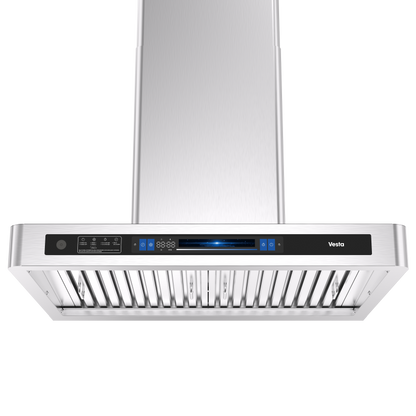

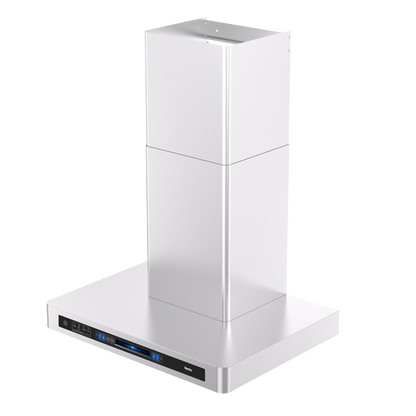

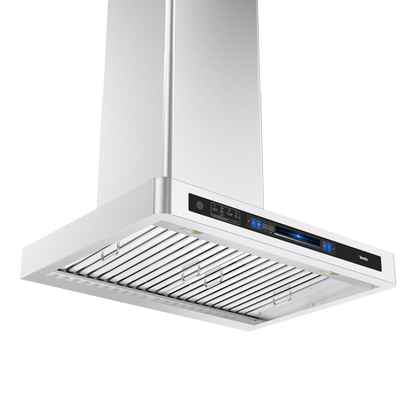

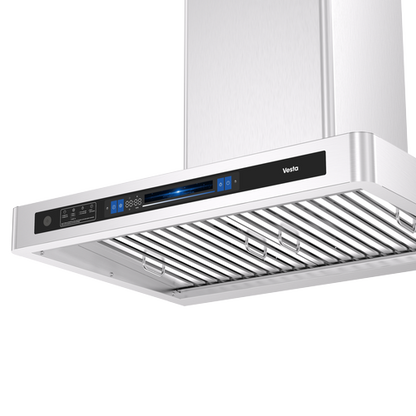

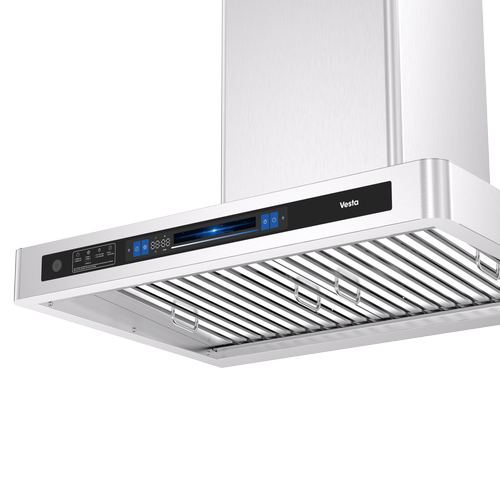

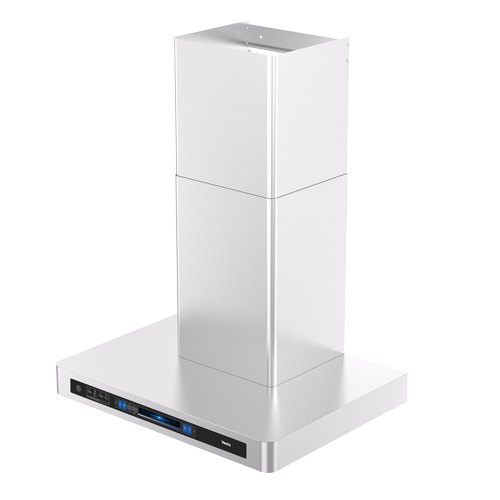

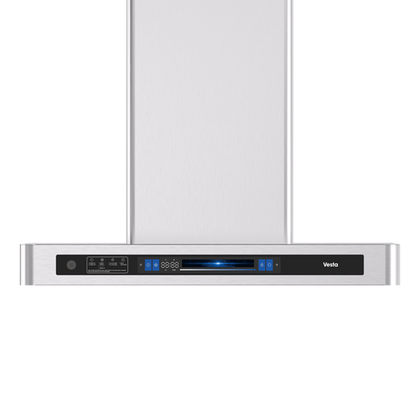

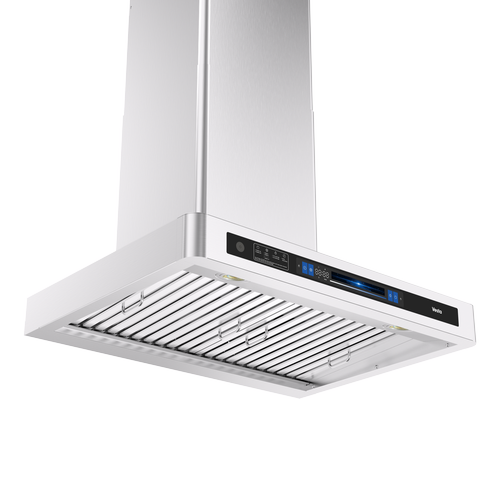

La campana extractora de pared de acero inoxidable de 30 pulgadas Hamburg de Vesta es un compañero duradero y confiable para tu cocina. Con un motor de CC ultrarresistente, un panel táctil, dos filtros deflectores, una cubierta de acero inoxidable y dos luces LED, esta campana extractora elevará tu experiencia culinaria a nuevas alturas. Esto es lo que la hace destacar:
✅ Ventilación potente – Expulsa el aire a un máximo de 1000 CFM, eliminando eficazmente el humo, la grasa y los olores.
✅ Flujo de aire personalizable – Cambia fácilmente entre 16 velocidades de ventilador utilizando el panel de control táctil de respuesta.
✅ Funcionamiento versátil – Disfruta de un control sin esfuerzo con comandos de voz, gestos o pantalla táctil.
✅ Rendimiento ultrasilencioso – El motor de CC avanzado proporciona una ventilación potente mientras funciona de forma más silenciosa que las campanas extractoras estándar.
✅ Filtros deflectores fáciles de limpiar – Los filtros de acero inoxidable desmontables y aptos para lavavajillas garantizan un mantenimiento sin complicaciones.
✅ Instalación sencilla – Equipado con un conector de ventilación superior redondo de 6 pulgadas, compatible con la mayoría de los sistemas de conductos estándar.
✅ Iluminación LED de bajo consumo – Dos luces LED de larga duración proporcionan una iluminación brillante y de bajo consumo para tu espacio de cocción.
✅ Diseño duradero y fácil de mantener – El elegante cuerpo de acero inoxidable es resistente a las manchas y se limpia fácilmente con un paño húmedo.
Pairs well with
Motor de corriente continua Hamburg 30" | Plateado | Motor de corriente continua
If you have any questions about technical details, dimensions, or shipping, feel free to reach out to us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
• Free Shipping: All range hood orders over $250 USD qualify for free shipping.
• Standard Shipping: Orders typically ship via UPS Standard.
• Other Categories: Shipping fees for non-range hood products are calculated at checkout.
• Expedited Shipping: Need it sooner? Expedited shipping is available at an additional cost.
• Accessories: A flat shipping fee of $16.99 USD applies to all accessories. -
Customer Support
If you have any questions or concerns, feel free to reach us directly at 905-886-5858 or service@vesta.kitchen.
-
Troubleshooting
No Electricity After Installation
• Confirm the range hood wiring is correct.
• Check the circuit’s power supply and make sure the fuse is intact.
Vibration During Operation
• Confirm the range hood wiring is correct.
• Check the circuit’s power supply and make sure the fuse is intact.
Weak Suction
• Ensure the exhaust duct is at least 4 inches in diameter, under 10 feet in length, and has fewer than 3 turns. If any of these conditions are not met, it’s likely not a range hood issue.
• Test suction by running the hood without the duct. If it works normally, the duct setup is the problem; otherwise, contact the manufacturer.
• Check that the outlet flap is fully open. If there’s an exterior wind shield, consider removing its flap to prevent airflow obstruction.
Blower Doesn’t Rotate (Light is On)
• This may indicate a circuit board failure. Please contact the manufacturer.
Fan Wheel Stuck or Rattling
• The blower might be touching nearby wires; clean around it to remove any obstruction.
• If the fan is jammed or damaged from shipping, contact the manufacturer. -
Contact Us
We’re here for you Monday–Friday, 9 a.m.–5 p.m. EST. Call us at 1-866‑808‑3782 or email service@vesta.kitchen.
Specifications
| Número de modelo | VRH-HAMBURG-30SS |
|---|---|
| Nombre del producto | Hamburg 30SS |
| Código postal | 675487202218 |
| Ancho nominal | 30" |
| Dimensiones de la campana (An. × Pr. × Al.) | 29,5" × 22" × (23,2" - 46,2") |
| Dimensiones del recorte (An. × Pr. × Al.) | N/D |
| Dimensiones de la chimenea (An. × Pr. × Al.) | 13,2" × 12" × (20" - 43") |
| Peso neto del producto | 28,5 kg |
| Cuerpo | acero inoxidable |
| Color/Acabado | Plata |
| Tipo de instalación | Montaje en pared |
|---|---|
| Conductos | Conductos |
| Tamaño de ventilación | 6" |
| Configuración de escape | Superior (redondo) |
| Requisitos eléctricos | 120 V/60 Hz |
| Número de motores | 1 |
|---|---|
| Potencia del motor | 135 vatios |
| Tipo de motor | CC |
| Flujo de aire máximo | 1000 CFM |
| Niveles de velocidad del ventilador | 16 |
| Tipo de ventilador | Ventilador centrífugo |
| Nivel mínimo de ruido | 35 dB |
| Nivel máximo de ruido | 60 dB |
| Tipo de filtro | Filtro deflector |
| Número de filtros | 2 |
| Mantenimiento del filtro | lavable |
| Tipo de luz y potencia | LED, 3 vatios |
| Base ligera | Propietaria |
| Número de luces | 2 |
| Tipo de control | Pantalla táctil con soporte para deslizar |
| Tipos de control adicionales | controles gestuales, controles de voz |
| Control remoto portátil | No |
| Bandeja de aceite | Sí |
| Apagado retardado | Sí |
| Garantía (piezas y mano de obra) | 1 año |
| Garantía (motor) | de por vida |
| Certificación | cETL |
